CNC Turning Centre
CNC Turning Centre
High-performance CNC Turning Centres designed to improve machining productivity while delivering reliable, precise and efficient performance for industrial manufacturing requirements.
Get a Machine Enquiry
Precision Turning for Higher Productivity
Increasing the productivity of CNC lathes is a competitive necessity in today's markets. At SKI Tech Machinery, we specialize in providing CNC Turning Centres that take advantage of the specific capabilities of CNC lathes. With extensive knowledge of machine design, installation and testing, our focus is on developing reliable solutions that support smooth and efficient production operations.
Salient Features
Convenient Front Access
Convenient front access to chuck and tailstock pressure controls for easier machine operation.
Split Bed Construction
Split bed construction designed to support stable and dependable machining performance.
Front Loading Coolant System
Front loading coolant tank and chip conveyor design helps minimize maintenance requirements.
Thermally Stabilized Spindle
Cartridge-type thermally stabilized spindle with high axial and radial rigidity.
Electro-Mechanical Turret
Electro-mechanical turret system designed for efficient and reliable tool positioning.
Easy Maintenance
Practical machine design supports convenient inspection, servicing and routine maintenance.
Accessories & Options
Standard Accessories
- L.M. Guideways – Hiwin / PMI
- Hydraulic Chuck – Airtech / GMT
- Bi-Directional Electro-Mechanical Turret – Pragati
- Cooling System
- Centralized Lubrication System
- Digital Tool Display
- Foot Switch
Optional Accessories
- Chip Conveyor
- Bar Feeder
- Bar Puller
- Stabilizer
- Hydraulic Collet
- Auto Door
- Live Tooling
Available Product Range

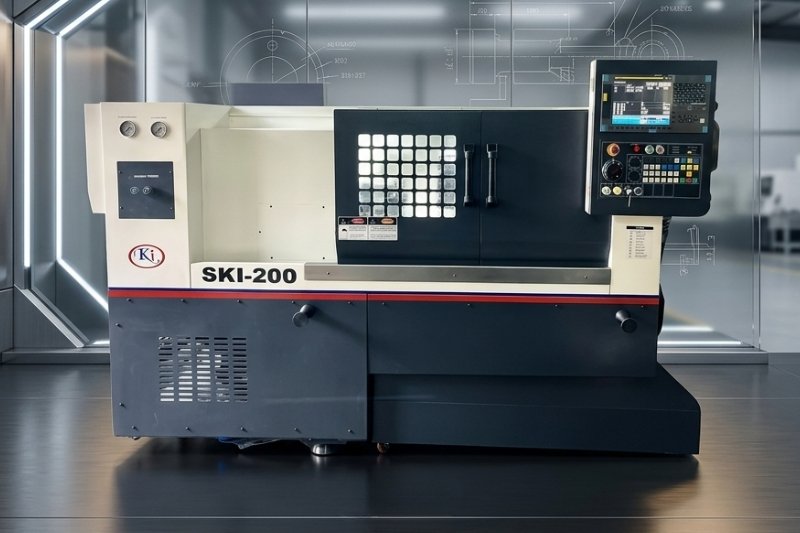

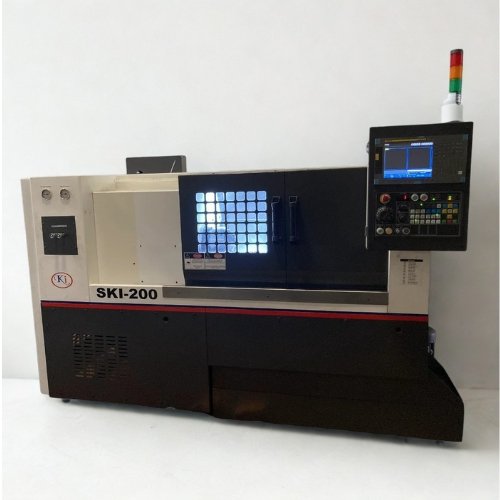

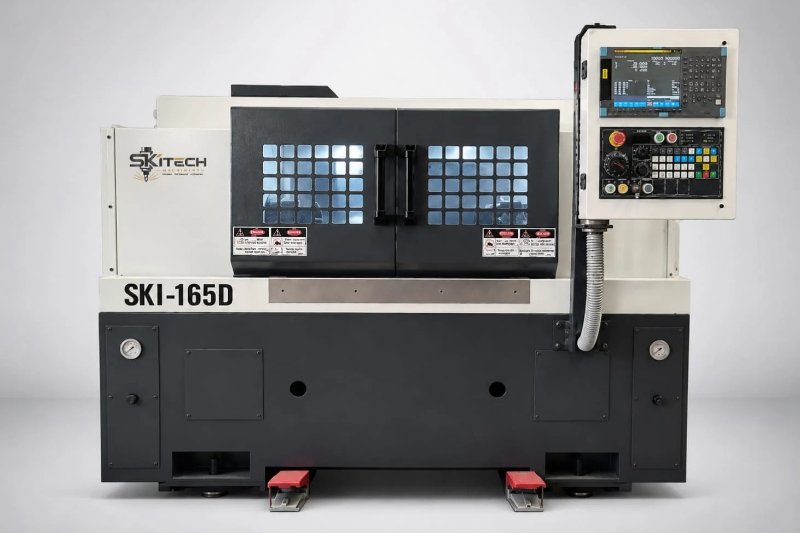

| Description | Unit | SKI-135 | SKI-165 | SKI-200 | SKI-200XL | SKI-250 | SKI-250XL | SKI-300 | SKI-300XL |
|---|---|---|---|---|---|---|---|---|---|
| Max Turning DIA | MM | 160 | 200 | 250 | 250 | 300 | 300 | 350 | 350 |
| Max Turning Length | MM | 180 | 300 | 300 | 400 | 300 | 400 | 300 | 400 |
| Swing Over Bed | MM | 250 | 300 | 350 | 350 | 400 | 400 | 450 | 450 |
| Distance Between Center | MM | 280 | 400 | 400 | 500 | 400 | 500 | 400 | 500 |
| Standard Turning DIA | MM | 135 | 165 | 200 | 200 | 250 | 250 | 300 | 300 |
| Slides | |||||||||
| Z Axis Travel | MM | 300 | 400 | 400 | 500 | 400 | 500 | 400 | 500 |
| X Axis Travel | MM | 100 | 125 | 140 | 140 | 175 | 175 | 200 | 200 |
| Rapid (X & Z Travel) | MM/Min | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
| Main Spindle | |||||||||
| Spindle Motor | KW | 3.7/7.5 | 5.5/7.5 | 7.5/11 | 7.5/11 | 11/15 | 11/50 | 15/18 | 15/18 |
| Spindle Nose | - | A 2/4 | A 2/5 | A 2/6 | A 2/6 | A 2/6 | A 2/6 | A 2/8 | A 2/8 |
| Spindle Bore | - | 38 | 50 | 63 | 63 | 63 | 63 | 75 | 75 |
| Max Bar Capacity | - | 25 | 35 | 50 | 50 | 50 | 50 | 60 | 60 |
| Chuck Size | - | 135 | 165 | 200 | 200 | 250 | 250 | 300 | 300 |
| Spindle RPM | - | 6000 | 4000 | 4000 | 4000 | 3000 | 3000 | 2000 | 2000 |
| Turret | |||||||||
| No. of Stations | - | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Tool Size | - | 20 x 20 | 20 x 20 | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 |
| Max Boring Bar Capacity | - | 32 | 32 | 40 | 40 | 40 | 40 | 40 | 40 |
| Accuracy Positioning | - | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
| Repeatability | - | 0.008 | 0.008 | 0.008 | 0.008 | 0.008 | 0.008 | 0.008 | 0.008 |
| Quill DIA | MM | 70 | 70 | 70 | 80 | 80 | 80 | 80 | 80 |
| Quill Stroke | MM | 80 | 80 | 80 | 100 | 100 | 100 | 100 | 100 |
| General | |||||||||
| Weight | KG | 1800 | 1800 | 2200 | 2400 | 2400 | 2600 | - | - |
| Machine Dimensions | MM | 1400 x 2000 | 1400 x 2000 | 1600 x 2400 | 1600 x 2700 | 1800 x 2400 | 1800 x 2700 | 2000 x 2500 | 2000 x 2800 |
Complete Manufacturing Solutions
SKI Tech Machinery provides manufacturing solutions for CNC Turning, CNC Router, CNC Glass Cutting Machines and various types of Industrial Automation. Our focus is on delivering practical engineering solutions designed around manufacturing requirements, productivity and dependable machine performance.
Looking for the Right CNC Turning Centre?
Share your machining requirements with SKI Tech Machinery and discuss the suitable CNC Turning Centre for your production needs.
